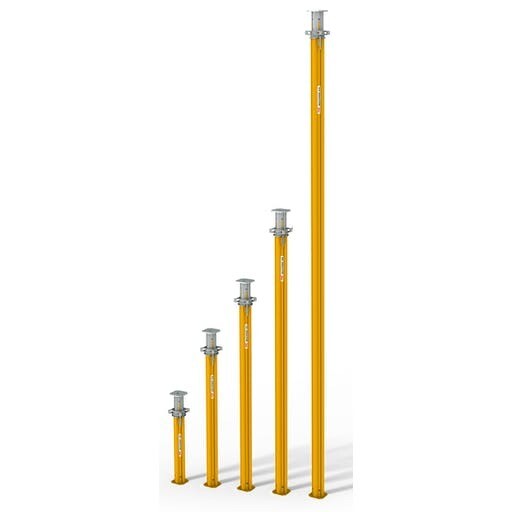

Titan Aluminium Prop Supports 1.7m - 2.9m (100x100)
Product Details
Weight:
17.00 kg
Titan props are a great choice of temporary propping system in awkward or limited access environments where very high load-bearing combined with easy handling are paramount to the job.
TITAN PROP SPECIFICATIONS & WORKING LOAD LIMITS
| Titan | No.2 | No.4 | No.6 |
|---|---|---|---|
| Range | 1.7 m- 2.9m | 2.9m – 4.1m | 4.3m – 5.5m |
| Weight | 17kg | 21kg | 28kg |
| Metres | (KN) | ||
| 1.70m | 100.0 | ||
| 1.90m | 100.0 | ||
| 2.10m | 100.0 | ||
| 2.30m | 100.0 | ||
| 2.50m | 88.0 | ||
| 2.70m | 57.0 | (KN) | |
| 2.90m | 42.0 | 94.9 | |
| 3.10 | 79.9 | ||
| 3.30 | 70.0 | ||
| 3.50 | 62.4 | ||
| 3.70 | 55.5 | ||
| 3.90 | 50.0 | ||
| 4.10 | 41.0 | (KN) | |
| 4.30 | 42.0 | ||
| 4.50 | 39.0 | ||
| 4.70 | 37.1 | ||
| 4.90 | 33.0 | ||
| 5.10 | 31.0 | ||
| 5.30 | 28.0 | ||
| 5.50 | 27.0 |
