Scissor Lift - 32FT (12m) Compact 12DX Diesel (Haulotte - HAUL12DX) #07
Product Details
Weight:
3 965.00 kg
Diesel Rough Terrain 32ft Scissor Lifts
COMPACT 12 DX
Product Details
Weight: 3965
kg

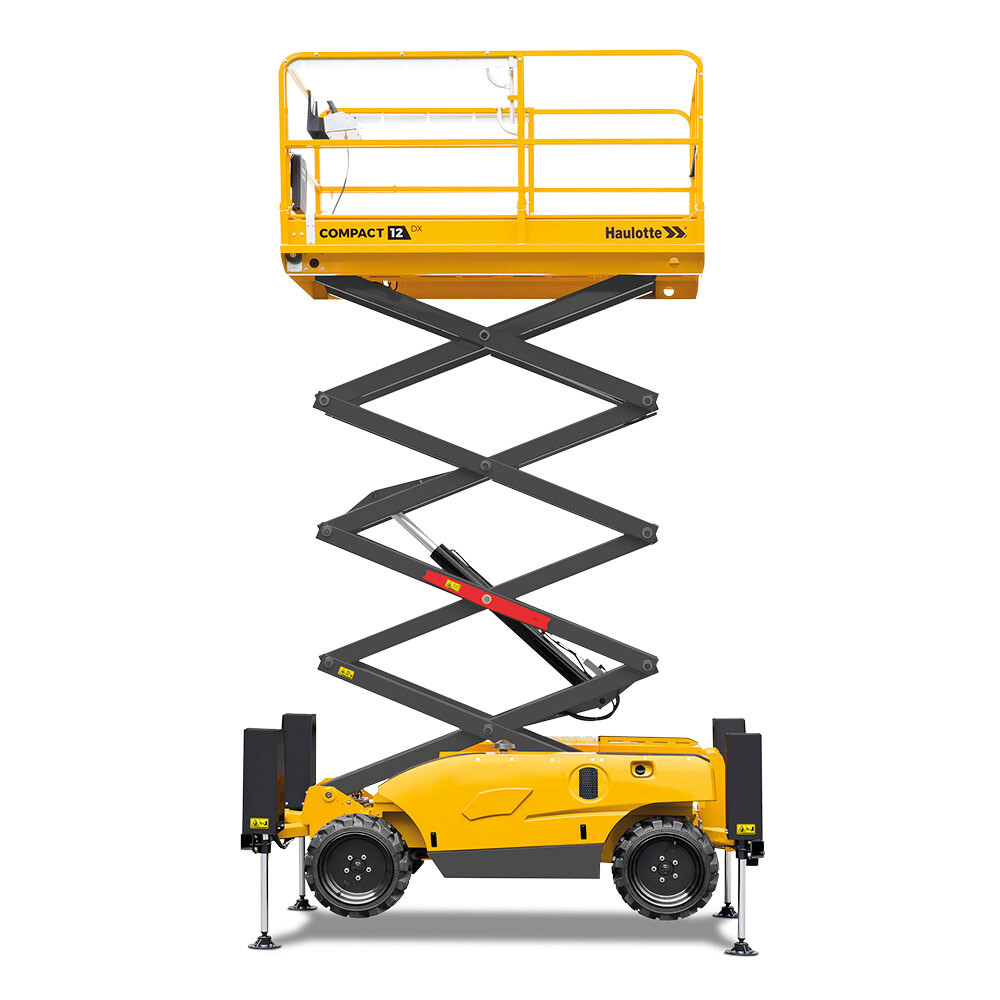

Our Haulotte Compact 12 DX Rough Terrain Scissor Lift has outstanding rough terrain driving features, 4 wheel drive
Is robust and easy to maintain, with narrow turning radius
Outriggers positioned within the machine footprint with One switch to deploy and retract 4 outriggers| Working height | 12.06 m |
| Platform height | 10.06 m |
| Lift capacity | 450 kg (3 pers.) |
| Platform length | 2.45 m |
| Extended platform length | 3.7 m |
| Platform extension length | 1.2 m |
| Platform width | 1.45 m |
| Storage height | 1.7 m |
| Height - stowed | 2.56 m |
| Width | 1.78 m |
| Length | 3.18 m |
| Wheelbase | 1.84 m |
| Drive speed | 0.6 - 5.5 km/h |
| Maximum drive height | 8.15 m |
| Gradeability | 40 % |
| Tilt alarm | 3 ° |
| Lift / lower speed | 35 s / 51 s |
| Turning radius - outside | 3.5 m |
| Tyres - foam-filled | 26 x 12 - 16.5 |
| Engine | Kubota, 18.5 kW (Stage 5 in EU) |
| Hydraulic system capacity | 75 l |
| Weight | 3965 kg |
| Platform size - extended | 3.7 x 1.45 m |
| Number of extensions | 1 |
| Ground clearance | 28 cm |
| Lift capacity on the extension | 150 kg |
Compact 12 DX - DATASHEET AU
