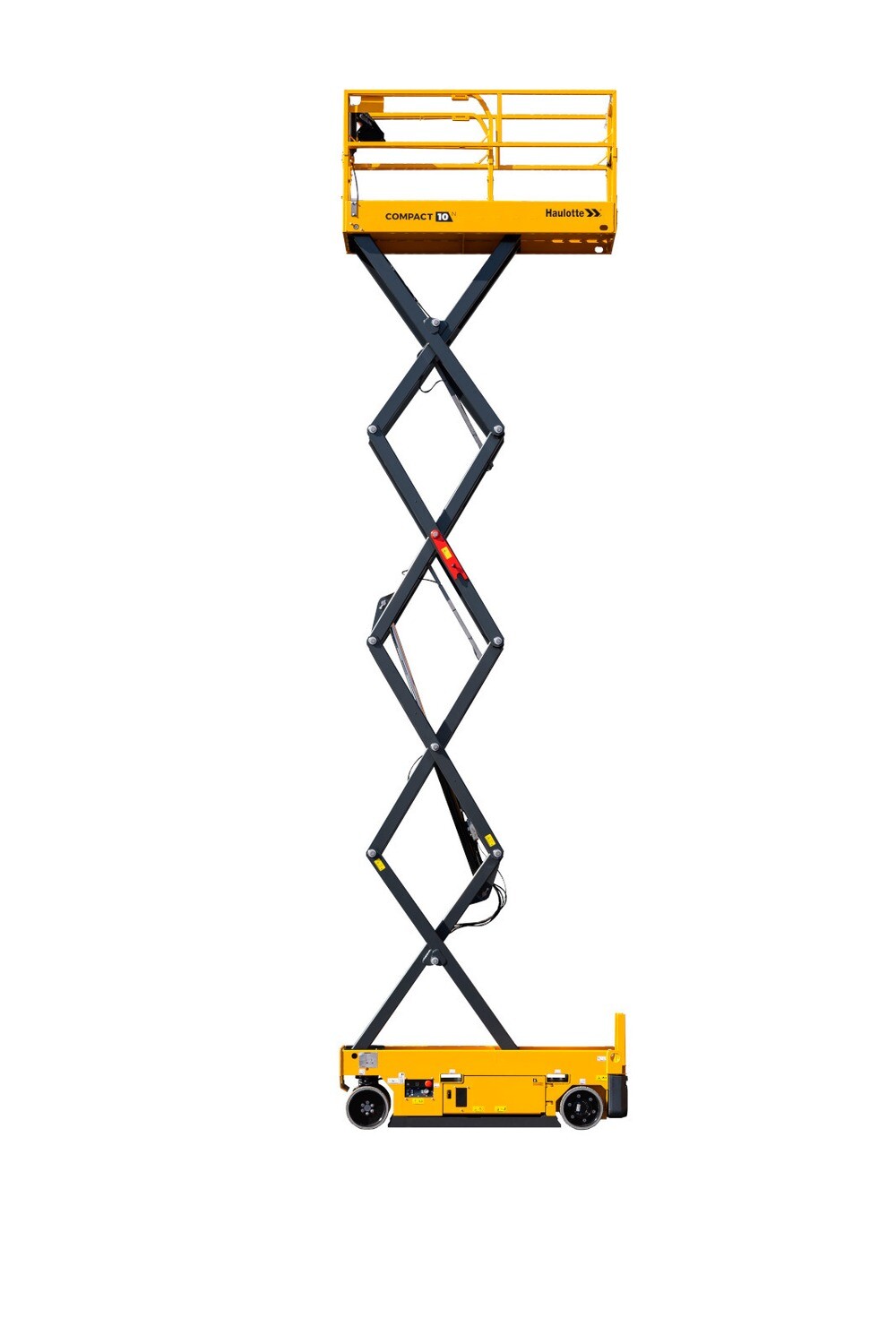

Scissor Lift - 26FT (9.8m) Compact 10N Electric (Haulotte-10N) #06

SKU PHG-HAUL10N-06

AU $225.00

In stock: 1 available

Quantity:

Save this product for later

Scissor Lift - 26FT (9.8m) Compact 10N Electric (Haulotte-10N) #06

Product Details

Weight: 2 160.00 kg

Electric 26ft Scissor Lifts

Product Details

Weight: 2160 kg

Our Haulotte Compact 10 N Scissor Lift has a smart rugged design an is AC battery powered, High precision driving,

Access all worksites with foldable guardrails, lateral & longitudinal forklift pockets

Reinforced guardrails with additional vertical stile for maximum durability

Working height	9.8 m
Platform height	7.8 m
Platform length - outside	2.4 m
Platform length - extended	3.32 m
Length - extension	0.92 m
Platform width - outside	0.8 m
Height - stowed	2.35 m
Overall width	0.81 m
Length	2.5 m
Wheelbase	1.86 m
Ground clearance - center	12.5 cm
Ground clearance - deployed potholes	2 cm
Drive speed	0.7 / 1.5 / 4.2 km/h
Max. drive working height	7.8 m
Gradeability	25 %
Turning radius - outside	2.05 m
Non-marking tyres	15 x 5
Batteries	24 V - 225 Ah (C20)
Hydraulic system capacity	10 l
Weight	2 160 kg
Lift capacity - inside	250 kg (2 pers.)
Lift capacity - outside	NA
Lift capacity on the extension deck	120 kg
Guardrails lowered	1.94 m
Tilt (lonitudinal / lateral)	3.5° / 1.5°

Compact 10 N - DATASHEET AU

https://www.calameo.com/read/004524014061d41559665
