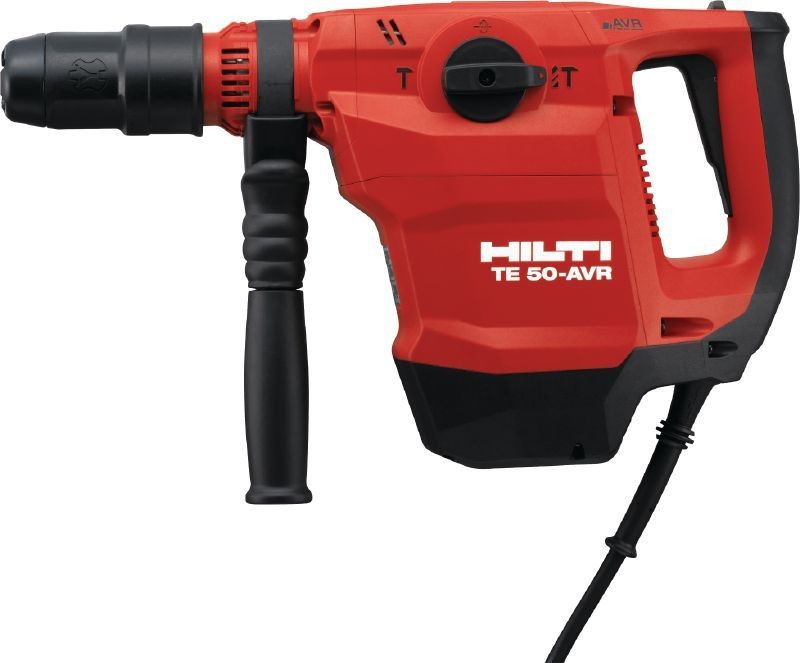

Hilti TE 50-AVR Combi Hammer Drill
Product Details
Weight:
6.10 kg
FEATURES & APPLICATIONS
Combi hammer TE 50-AVR 240 V
#2128230
Features
- Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
- Low contact pressure for high user comfort
- Active Vibration Reduction (AVR) makes the tool-less tiring to use – helping to increase daily productivity
- Optional DRS-Y dust removal system collects up to 95% of dust
- Detachable supply cord for quick and easy replacement of damaged/broken cords on the Jobsite
Applications
- Hammer drilling in concrete, masonry, and natural stone (possible diameter range 12-55 mm, recommended diameter range 16-32 mm)
- Light to medium-duty chiseling in masonry and concrete
- Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 45-150 mm, recommended diameter range up to 82 mm)
TECHNICAL DATA
Combi hammer TE 50-AVR 240 V #2128230- Weight according to EPTA Procedure 01/2003
- 6.1 kg
- Single impact energy
- 6 J
- Hammer drilling diameter range
- 12 - 40 mm
- Optimum hammer drilling range
- 16 - 32 mm
- Hammer drilling RPM
- 360 tours/minute
- Full hammering frequency
- 3510 impacts/minute
- Functionality
- Active Vibration Reduction (AVR), Chiselling, Depth gauge
- Triaxial vibration value for hammer drilling into concrete (ah,HD)
- 9 m/s² 1
- Dust removal system available
- TE DRS-Y, TE DRS-D, TE DRS-BK
- Rated input power
- 1100 W
- Dimensions (LxWxH)
- 449 x 115 x 272 mm
