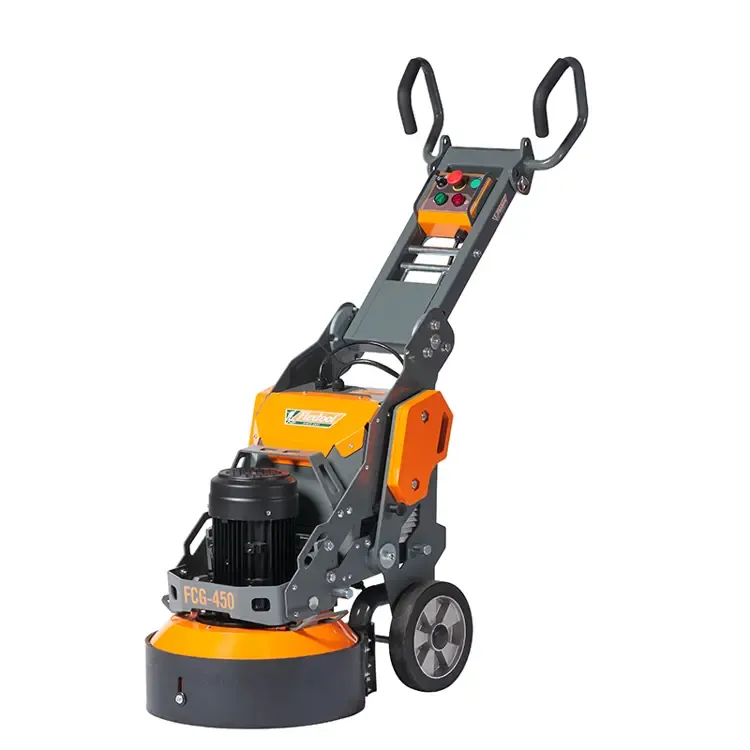

Flextool Planetary Concrete Grinder FCG-450
Flextool
Planetary Concrete Grinder FCG-450
450 mm - 240 V
The Flextool Planetary Concrete Grinder FCG-450 is compact in design and delivers exceptional grinding and polishing capability. Grinding efficiency is optimised through the placement of the motor directly above the grinding head, providing extra weight during operation. Additional weight can be added by moving adjustable head weights into position.
Featuring a height-adjustable handle, easy access control panel and central lifting hook, this machine is designed with the user in mind. The fully sealed aluminium gearbox provides enhanced durability and reduced maintenance. The floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head.
This grinder is ideal for small to medium size projects on residential or custom commercial work.
The Flextool Planetary Concrete Grinder FCG-450 should be used with a quality H-class dust collector, such as the Flextool Dust Collector
We supply compatible concrete grinding shoes and concrete polishing resins
- Easy operator access with control panel positioned within reach for optimised control and safety
- Variable speed allows operator to adjust grinding speed from 300 to 1800 rpm
- Floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head
- Fitted with 50 mm outlet for connection to vacuum system
- Two adjustable grinding head weights to increase pressure for improved grinding efficiency and performance
- Single phase 2.2 kW electric motor and inverter system for use with standard 10 amp power outlet
- Detachable grinding head for quick and easy separation of the grinding head and motor from the main chassis for easier and lighter handling and transportation
- Fully sealed aluminium gearbox provides enhanced durability and reduced maintenance (no drive belts)
- Reversible 3-way height-adjustable handlebar for superior ergonomics and operator comfort
- Folding handle with 3 locking positions for transport and storage, changing of consumables and operation
- Central lifting hook for easy and safe onsite handling
- Comes standard with 9 resin adaptors
- Can be used with a heavy-duty extension lead with a minimum 3 x 1.5 mm2 cable which does not exceed 20 metre in length
- This product is covered by the Flextool Promise
SPECIFICATIONS
Model | Grinding Width mm (in) |
Operating Weight kg (lb) |
Voltage V/Hz |
Max Current A |
Power Output kW |
Power Output hp |
Grinding Speed rpm |
IP Rating | Dust Outlet mm (in) |
Lifting Hook |
Grinding Shoes |
Product Code |
FCG-450 | 450 (18) |
145 (320) |
240 50/60 |
9.57 | 2.2 | 3 | 300 to 1800 |
55 | 50 (2) |
Yes | Easy Lock (Redi-Lock Compatible) |
FT100600-UNIT |
Technical Information (download)
Data Sheet – Flextool Planetary Concrete Grinder FCG-450 | ||
Operating Instructions - Flextool Planetary Concrete Grinder FCG-450 | ||
Risk Assessment - Flextool Concrete Grinder - All models |
