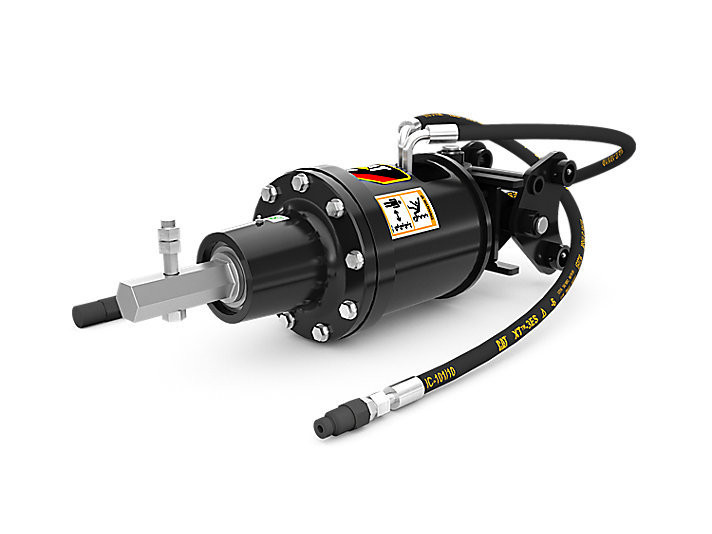

CAT Auger Drive (A7B)
Product Details
Weight:
81.00 kg
CAT Auger Drive (A7B) is available at an additional cost $145.00 per day hire when hiring our 1.5T - 1.8T Excavators

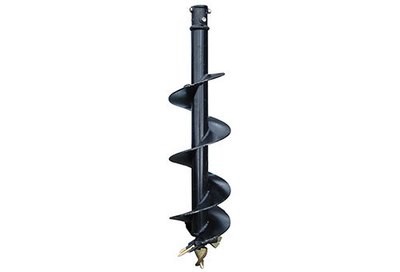

Cat® Augers are used for drilling holes for footings, fencing, signs, trees, and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.
Drive Shaft Torque at Maximum Pressure
1105 N·m
Housing Diameter
280 mm
Swing Range (fore/aft)
36 degrees
Swing Range (L/R)
76 degrees
Weight
81 kg
Motor Displacement
393 cm³
Bit Speed at Maximum Flow
191 rpm
Hex Output Shaft Size
51 mm
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
2 Ton Mini Excavator Pin On
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
75-90 L/min (20-24 gpm)
Optimal Hydraulic Pressure
105-150 bar (1523-2176 psi)
Overall Width - With Bracket
280 mm
Overall Length - With Bracket
280 mm
Overall Height
900 mm
